  • Introducing
    ZBRIDGE
    Opening New Operational Windows
  • ZBRIDGE
    A motion compensated gangway

Company

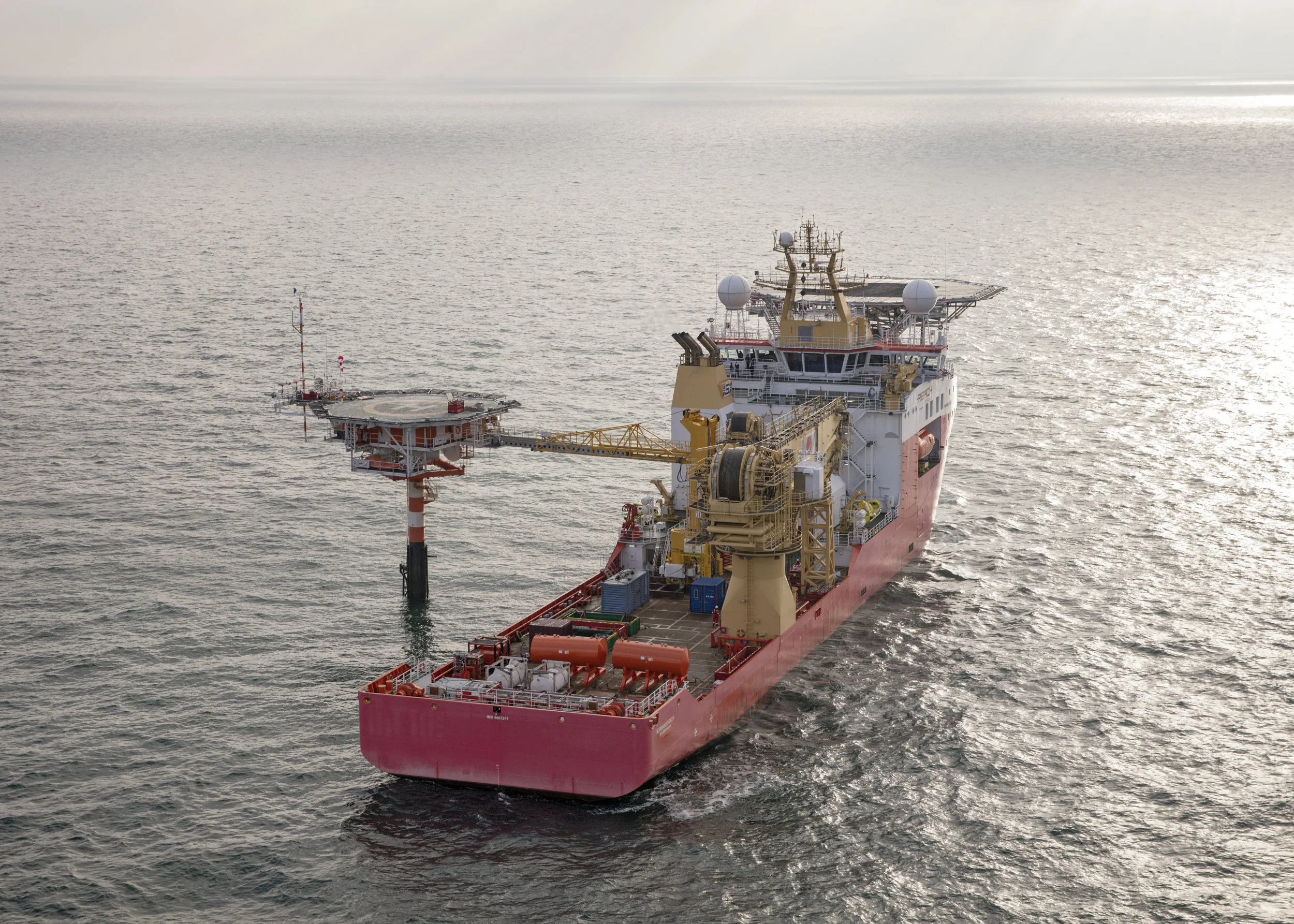

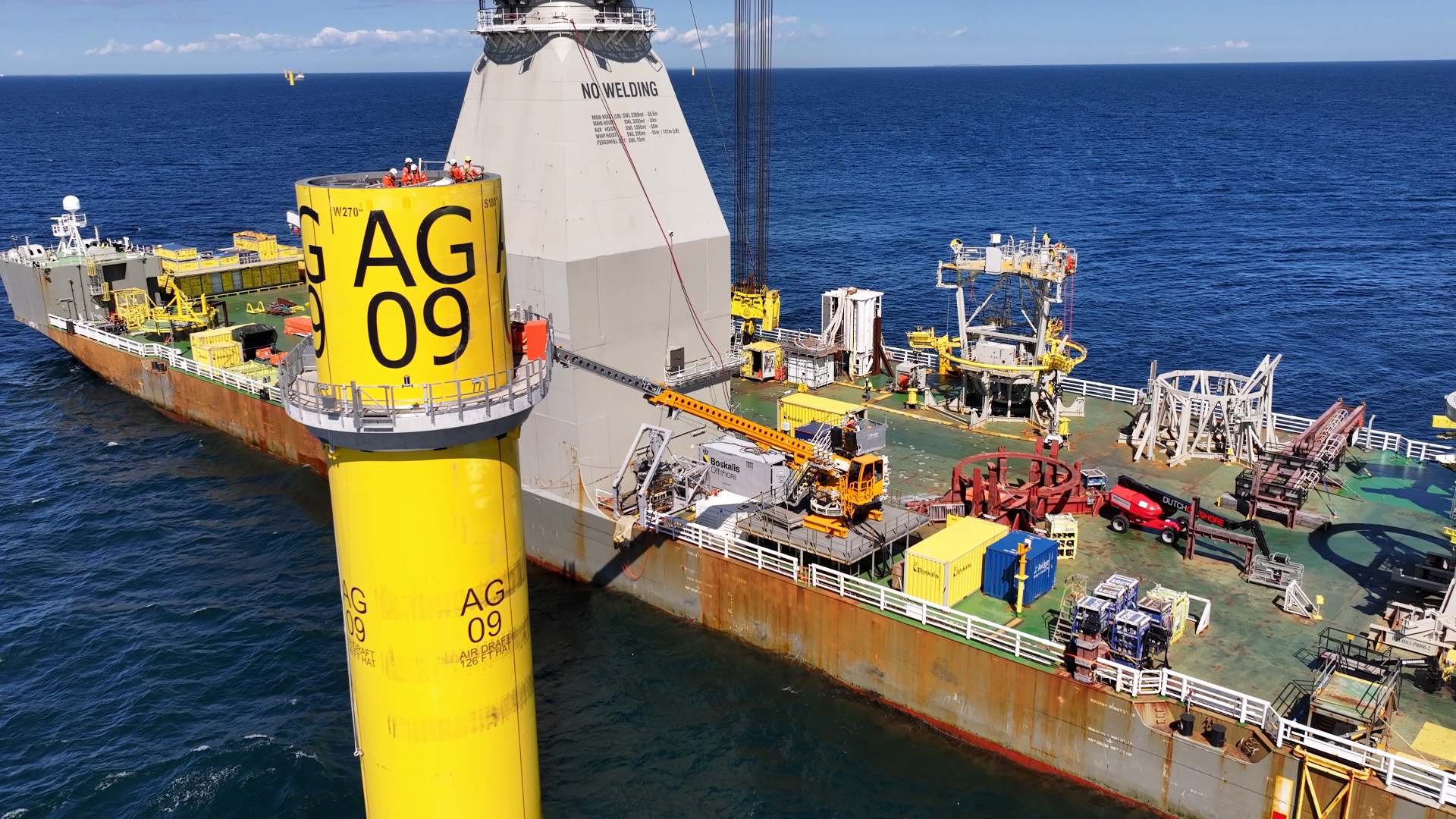

Zbridge BV is a company specialized in the rental and sales of Zbridge W2W systems. The company is providing project support to clients to ensure safe and efficient operations. The Zbridge is a Bureau Veritas certified W2W system. The patented system compensates the movement of the vessel for pitch, roll and heave to allow safe and efficient operation. The Zbridge W2W system provides direct access with an elevator for personnel and cargo to the +18 meter level of the offshore structure. This improves safety, comfort and allows continuous access without undocking the system.

Design

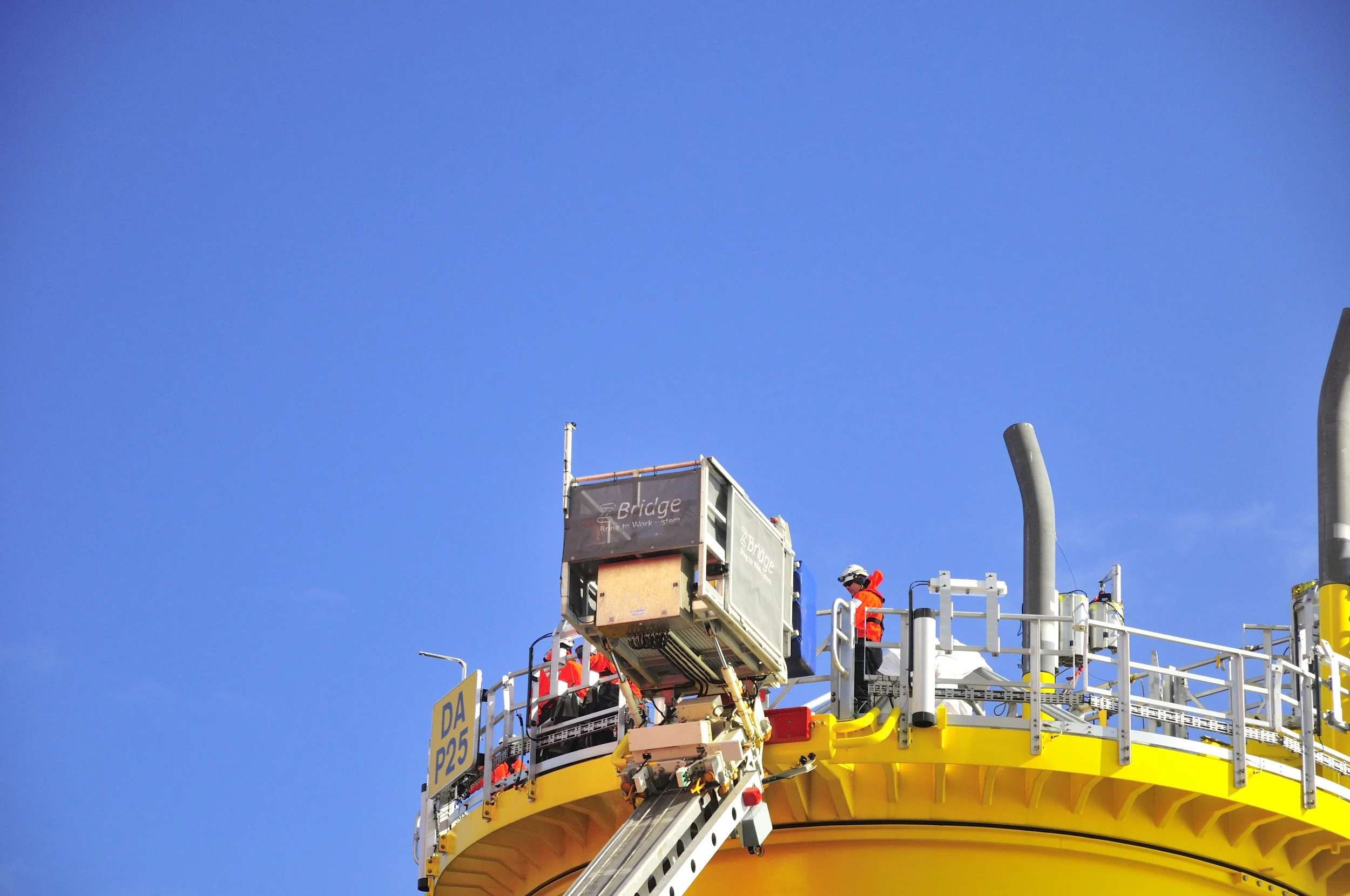

Zbridge is a motion compensated gangway suitable for the transfer of people and goods up to 500 kg. Zbridge is designed to operate in waves up to Hs=4,5m (8 BFT), allowing a large DP window for W2W vessels. With Zbridge you have direct access to the main platform (+18 LAT) through an elevator suitable for a crew of 4 and/or cargo up to 500 kg.

COMPENSATION

HS=4,5M (8 BFT)

CERTIFICATION

BUREAU VERITAS ACC.

WEIGHT

46T (EXCL. FOUNDATION FRAME)

FOOTPRINT

6x8M

POWER

2x200kW (HYDRAUVISION 20FT. HPU)

SAFETY

FULL REDUNDANCY
